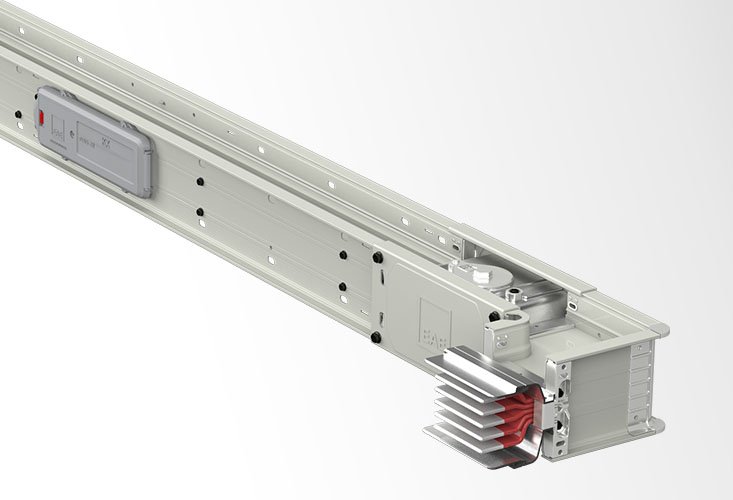

The E-Line KX Series Compact Busbar System is designed for horizontal and vertical energy distribution and transmission, available in both Bolt-on type, supplied from the junctures, and Plug-in type, supplied from window points on the busbar housing and the junctures. It can also be used in sections of factories and buildings where electrical outlets are not required and transmission is the only purpose, with a special design that helps keep voltage drop to a minimum.

Conductor configuration
The system is available with aluminium or copper conductors, in the following configurations:

  • 3 Conductor (L1/L2/L3/PE Housing)
  • 4 Conductor (L1/L2/L3/N/PE Housing)
  • 4 ½ Conductor (L1/L2/L3/N/½ PE/PE Housing)
  • 4 ½ Conductor (L1/L2/L3/N/½ CPE/PE Housing) – Clean Earth
  • 5 Conductor (L1/L2/L3/N/PE/PE Housing)
  • 5 Conductor (L1/L2/L3/N/CPE/PE Housing) – Clean Earth

Conductor material and rated currents

KX Series Busbar

  • Aluminium conductor: 400 / 500 / 630 / 800 / 1000 / 1250 / 1350 / 1600 / 1700 / 2000 / 2500 / 3200 / 4000 / 5000 / 6000A
  • Copper conductor: 550 / 650 / 800 / 1000 / 1250 / 1350 / 1600 / 2000 / 2500 / 3300 / 3600 / 4000 / 5000 / 6300A

KX-II Series Busbar

  • Aluminium conductor: 630 / 800 / 1000 / 1250 / 1600 / 2000 / 2350 / 2500 / 3000 / 3300 / 4000 / 5000 / 6300A
  • Copper conductor: 650 / 800 / 1000 / 1250 / 1350 / 1600 / 2000 / 2250 / 2500 / 2750 / 3000 / 3300 / 3600 / 4000 / 5000 / 6300A
